Back to Carton Sealers | EZ-Seal Fully Automatic Case Sealer

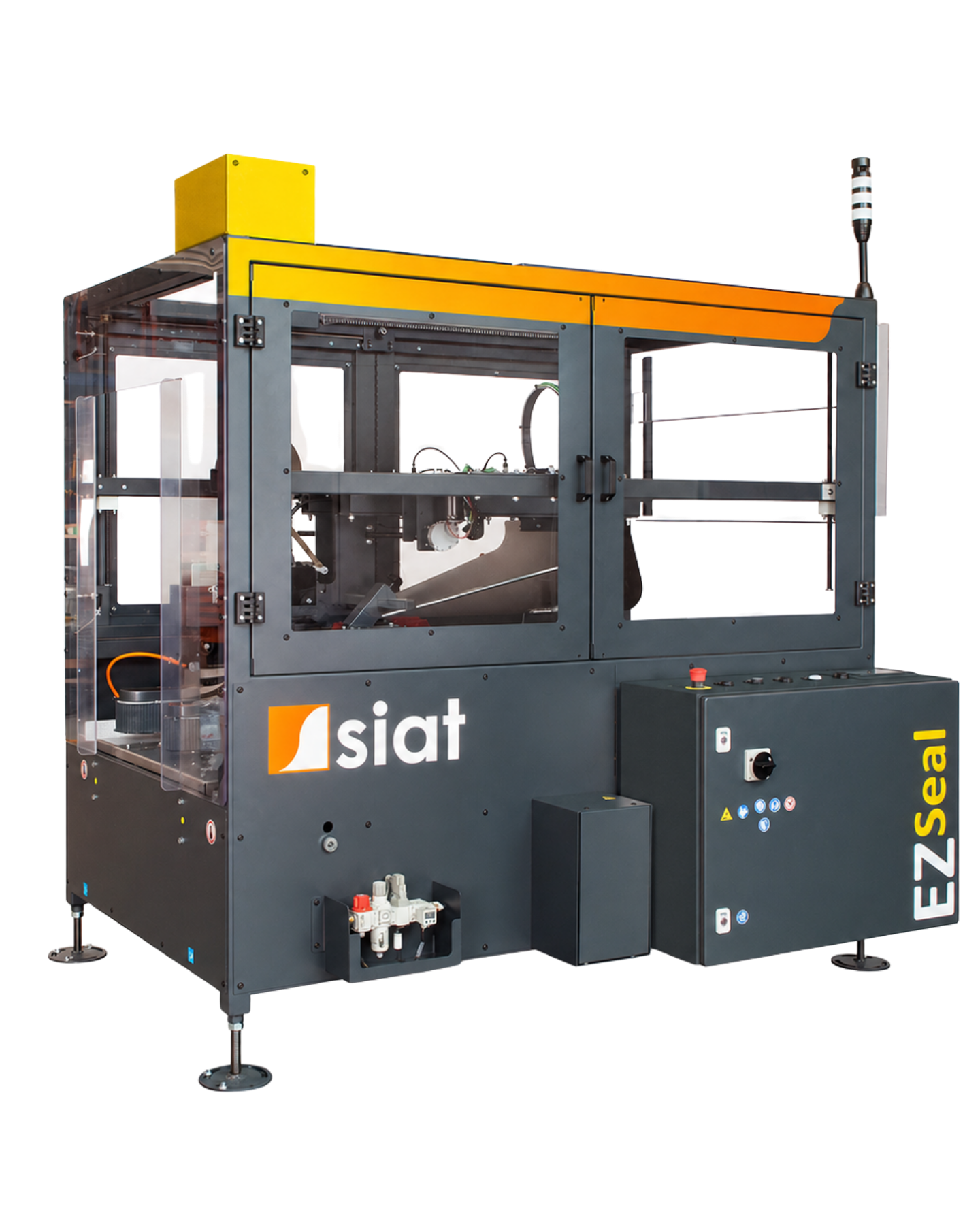

SIAT EZ-Seal Fully Automatic Case Sealer
Automatics
The EZ-Seal is a premium fully automatic uniform-size case sealing machine designed to handle filled regular slotted cartons without operator intervention. Featuring servo-driven automatic format adjustment, integrated box cadencing, and Industry 4.0 connectivity, it delivers high-speed, reliable carton sealing for automated end-of-line packaging systems.
KEY FEATURES
Fully automatic operation with productivity up to 35 boxes per minute (up to 40 bpm with optional rotary kicker) and belt speeds up to 50 m/min
Servo-driven automatic recipe-based format changes minimise downtime and allow quick switching between carton sizes
Industry 4.0 ready with OPC-UA protocol and open standards for seamless integration with PLC, SCADA, WCS and WMS systems
Integrated box cadencing system ensures smooth carton spacing, reducing jams and maintaining continuous production flow
Full PLC-based diagnostics provide clear fault monitoring, including end-of-tape warnings, sealing failures and box passage detection
Robust industrial construction with a high-strength painted steel frame, stainless steel sliding surface and heavy-duty actuator system for long-term reliability
Founded in 1970, Siat is the market leader manufacturing company producing machines for the packaging industry.
Specifications
Details
- Fully automatic high-speed case sealer engineered to maximise throughput in automated end-of-line packaging operations
- Processes up to 35 cartons per minute, with optional rotary kicker technology increasing output to 40 bpm
- Servo-driven recipe-based format changes enable fast, hands-free size adjustments and minimise downtime between production runs
- Integrated box cadencing system optimises carton flow, reduces bottlenecks and helps prevent line stoppages
- Side drive belt transport system delivers smooth carton handling and consistently accurate sealing performance
- High-speed taping heads ensure secure, repeatable top and bottom sealing, even in demanding production environments
- Industry 4.0 ready with OPC-UA connectivity and seamless integration with PLC, SCADA, WCS and WMS platforms
- Intuitive 7″ touchscreen HMI provides complete control, recipe management and real-time machine diagnostics
- Advanced PLC-based diagnostics quickly identify tape, sealing and carton detection issues to maximise uptime
- Compatible with RSC, HSC and FEFCO 0200, 0201 and 0205 carton styles across B, C and E flute board grades
- Heavy-duty steel construction with stainless steel sliding surfaces delivers exceptional durability and long-term reliability
- Configurable with a range of optional upgrades including Electric Rotary Kicker, Active Major Flap Folders, Centre Line Configuration, Offset Top Unit and SIAT Connect Remote Assistance
Power Requirements
- 220–240V
- Single Phase
- 50/60 Hz
- Pneumatic supply: 5.5–7 bar
Safety Features
- CE compliant with Machinery Directive
- Full PLC-based diagnostic monitoring
- Visible moving parts for easy inspection
- Lockout/Tagout (LoTo) procedure compatibility
- Integrated fault detection and warning system
Carton Size Range (mm)
Minimum Carton Size
- L 130 x W 100 x H 130 mm
Maximum Carton Size
- L 600 x W 500 x H 600 mm
Carton Specifications
| Specification | Details |
| Box Types | RSC, HSC, FEFCO 0200 / 0201 / 0205 |
| Flute Types | B, C, E |
| Carton Weight Range | 1–45 kg |
