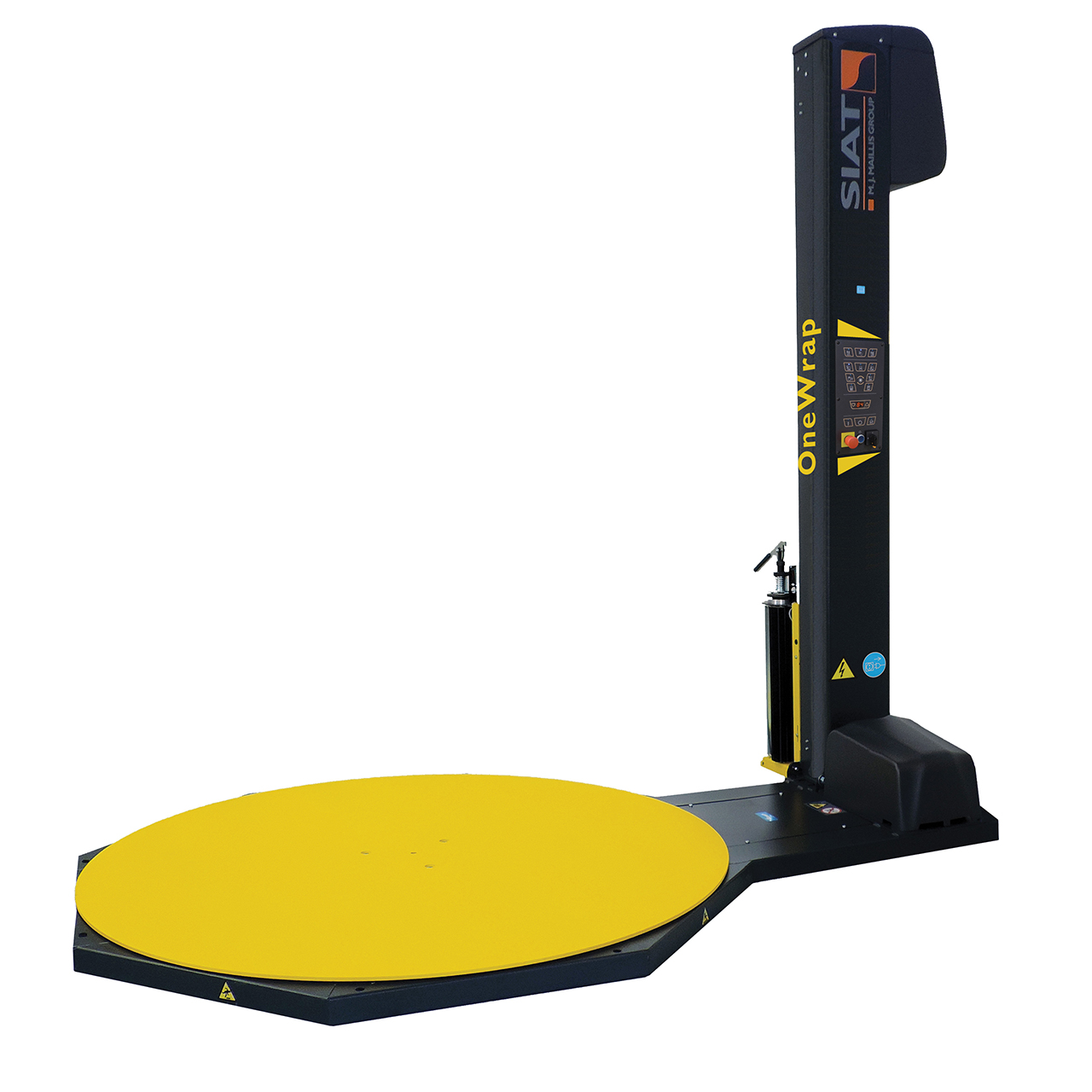

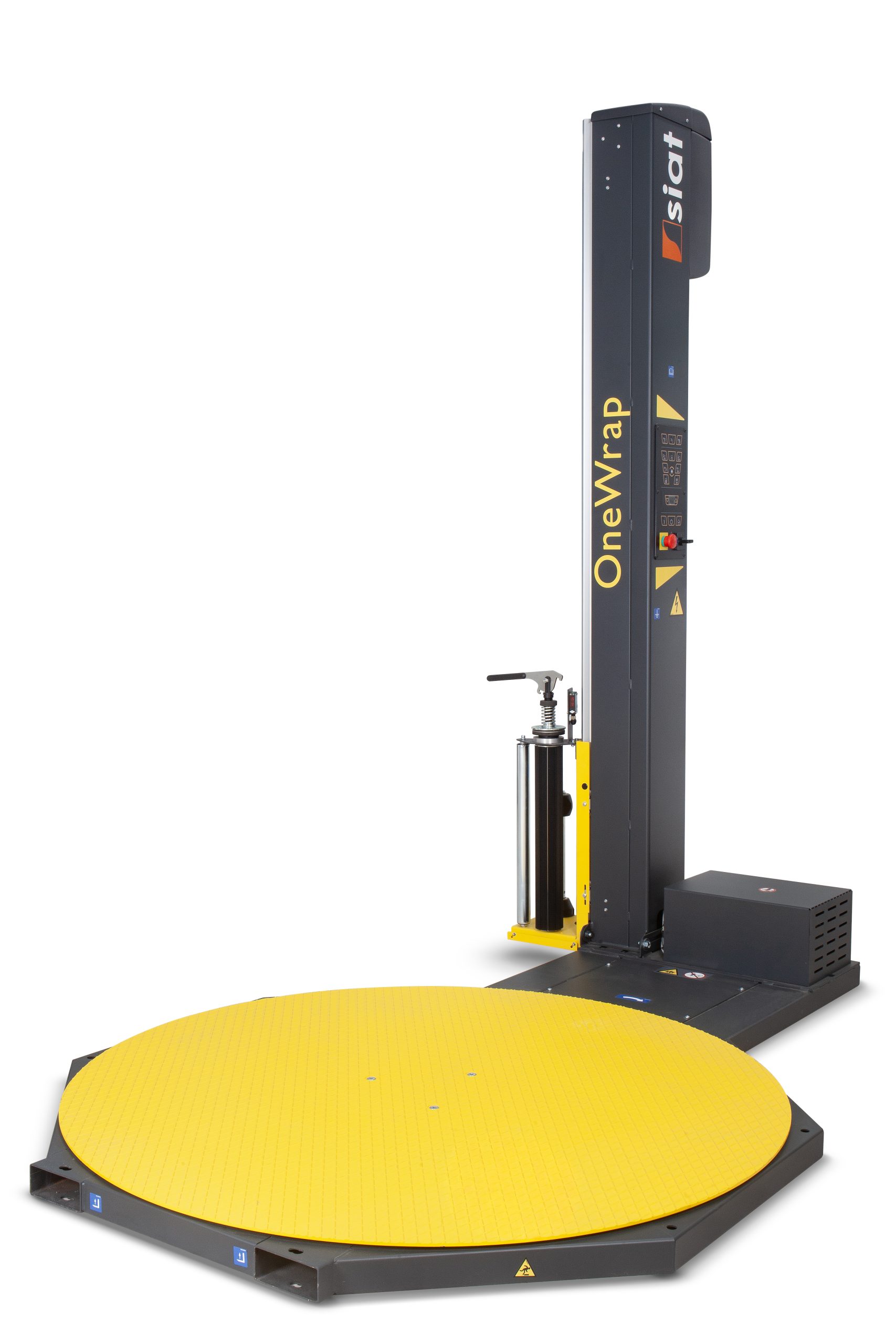

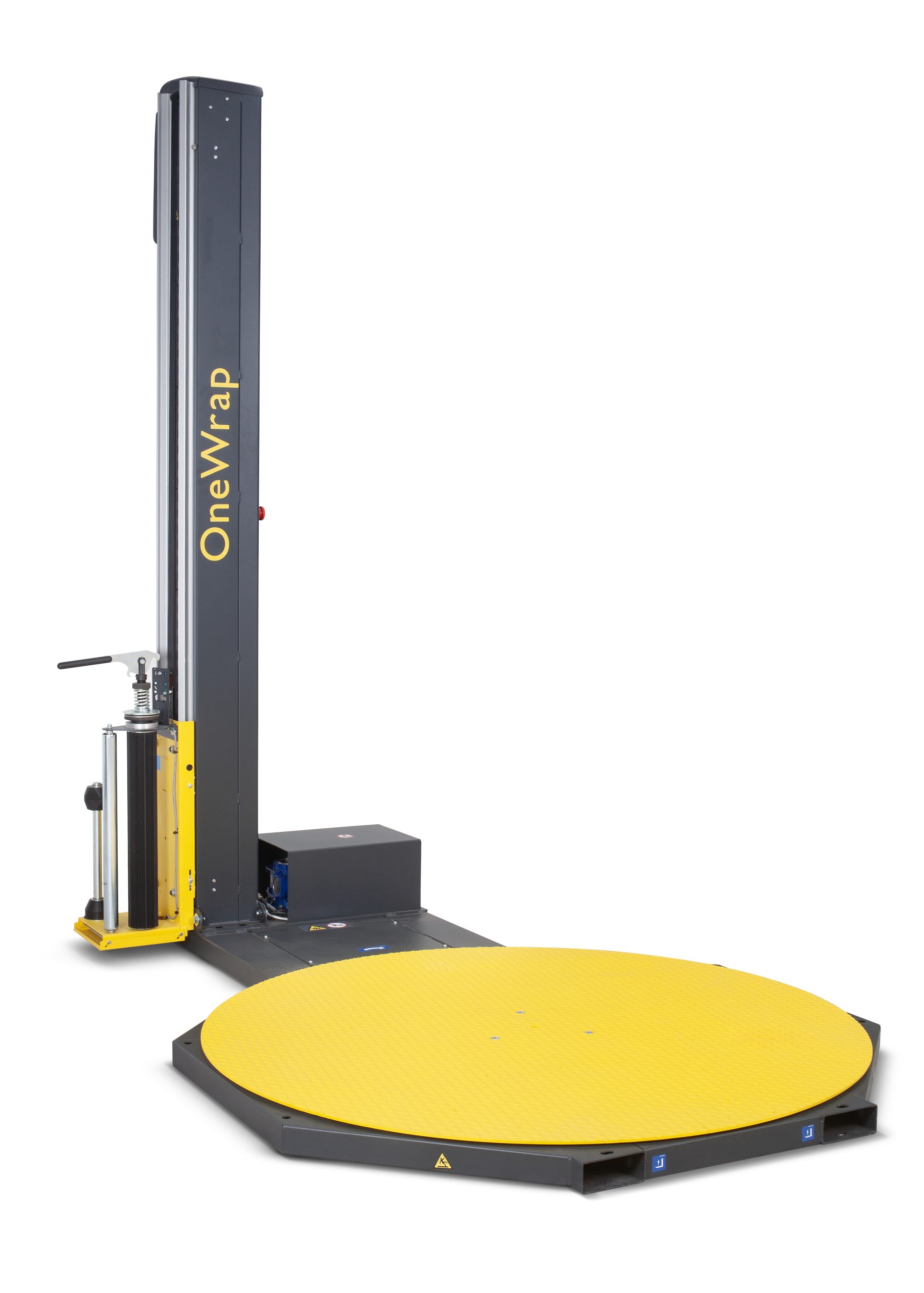

SIAT ONEWRAP Semi-Automatic Pallet Wrapper

Semi-Automatics

OneWrap is the ideal solution for common pallet wrapping needs, offering versatility from essential to moderate use. Designed for efficiency, it minimises film waste, maximises load stability, and provides reliable performance with minimal maintenance.

KEY FEATURES

Motorised pre-stretch and tension control minimise waste while ensuring secure wrapping.

10 programs with adjustable speed, tension, and overwrap for optimised performance.

2.4T capacity with a belt-driven carriage and reclining column for easy maintenance.

ENQUIRE TODAY

DOWNLOAD PRODUCT BROCHURE

Founded in 1970, Siat is the market leader manufacturing company producing machines for the packaging industry.

Specifications

Details

  • Semi-automatic stretch wrapper for palletized loads
  • 10 programmable wrapping cycles for consistency
  • Five operating modes: Automatic UP ONLY, Automatic UP & DOWN, Automatic UP ONLY + PAUSE FOR TOP SHEET, Automatic UP & DOWN + PAUSE FOR TOP SHEET and Manual mode

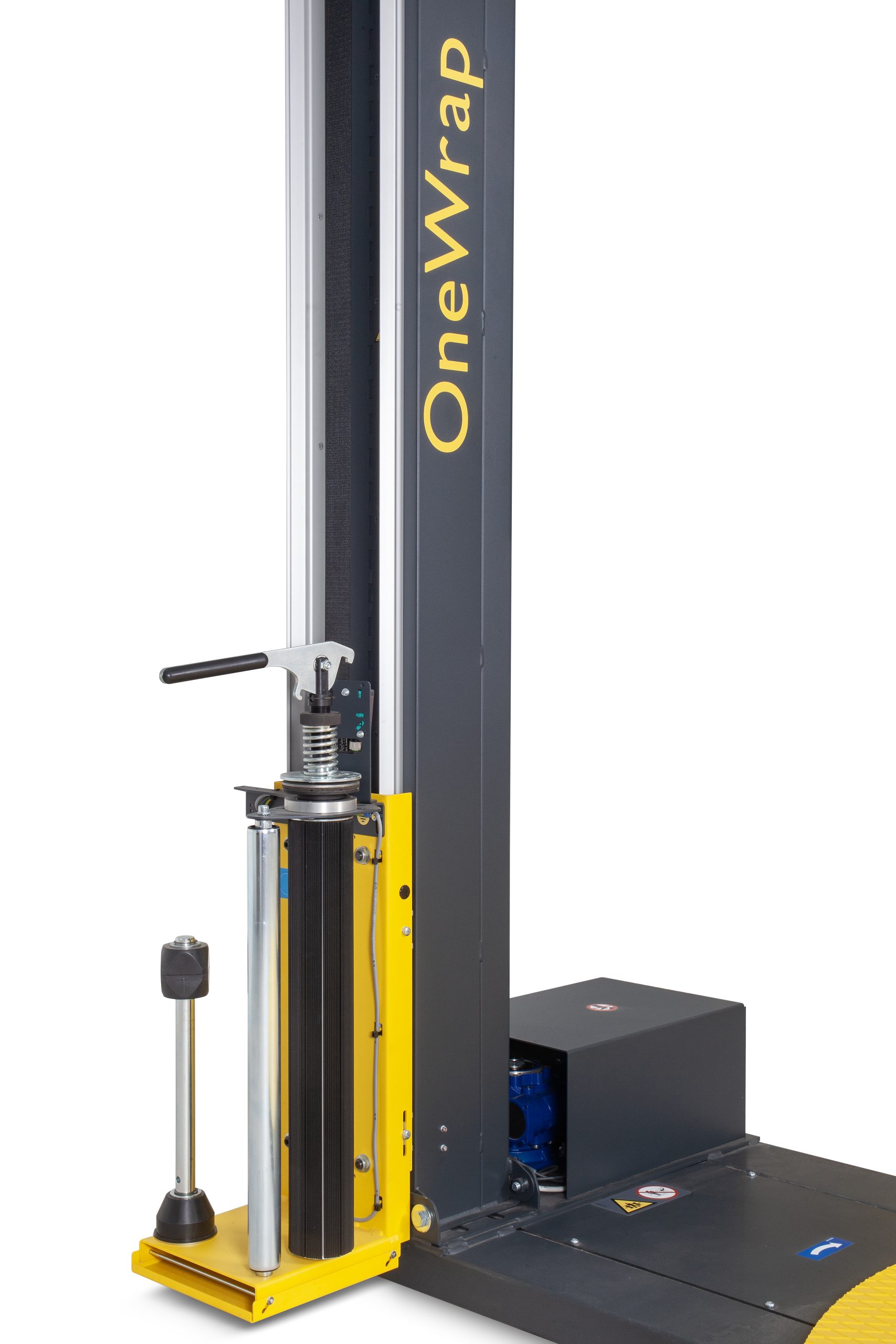

  • Belt-driven carriage for smooth film application
  • Reclining column for easy installation and repositioning
  • Turntable blocking feature for stability during loading/unloading
  • Two forklift access points for machine mobility

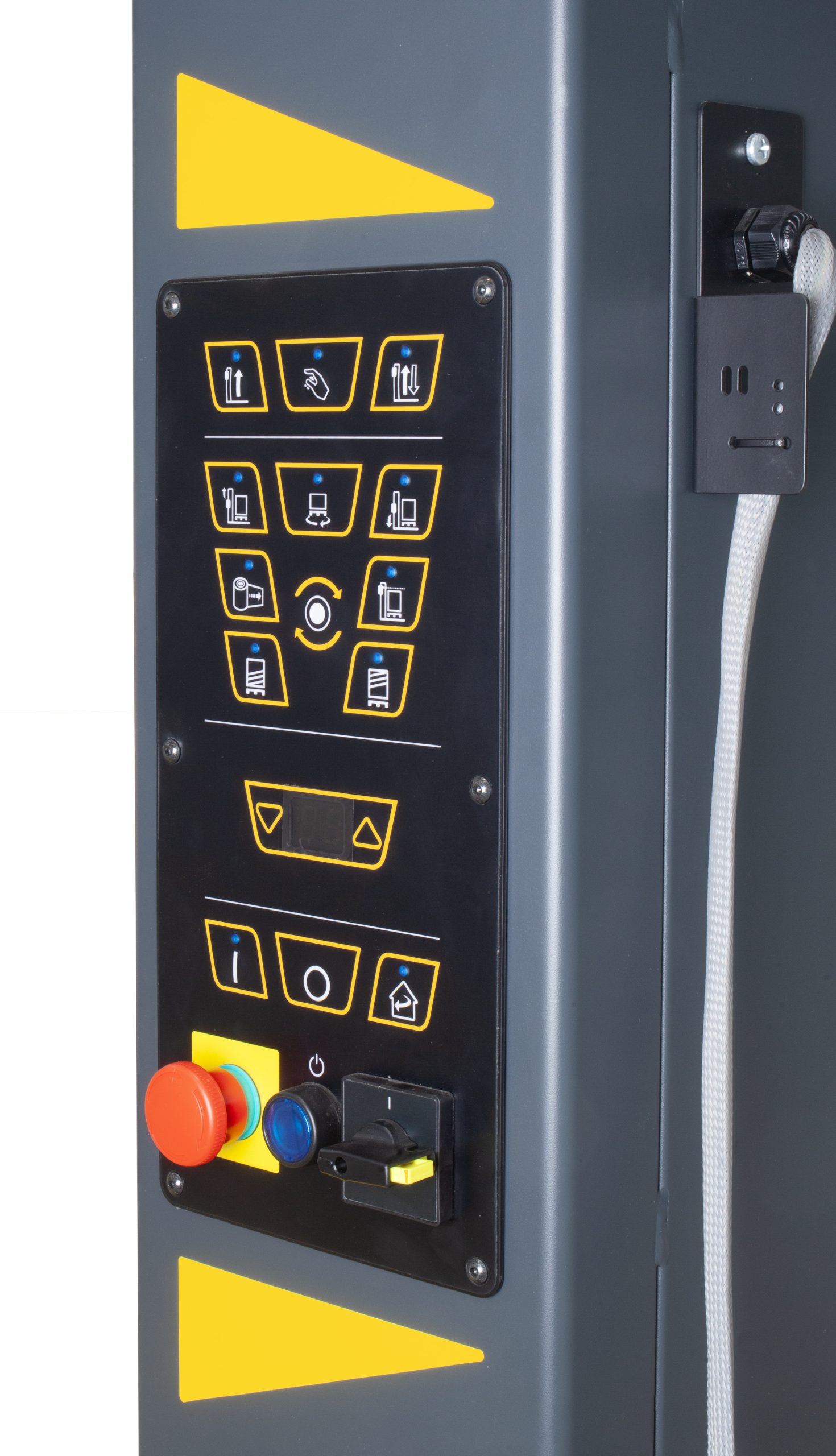

  • Large display with two-digit parameter adjustments
  • Maximum load capacity: 2,400 kg

Power Requirements

  • Power supply: 220/240V 50/60Hz or 400V 50/60Hz (others on request)
  • Platform rotation speed: 6 – 12 rpm (adjustable) / 5 – 10 rpm (HS platform)

Saftey Features

  • Emergency push-button compliant with regulations
  • Pallet height photocell for automatic load detection
  • Turntable blocking system to prevent movement during operation

Pallet Size Ranges (mm)

  • Platform diameter: 1,500 mm (standard) / Optional: 1,650 / 1,800 / 2,200 mm
  • Max pallet size: 800 x 1,200 mm – 1,550 x 1,550 mm (depending on turntable)
  • Max pallet height: 2,100 mm (standard) / 2,400 mm (medium)
  • Film roll capacity: Max width 500 mm / External Ø 300 mm / Core Ø 76 mm / Weight 20 kg / Thickness up to 35 microns
