Back to Carton Sealers | SK20 Semi-Automatic Carton Sealer

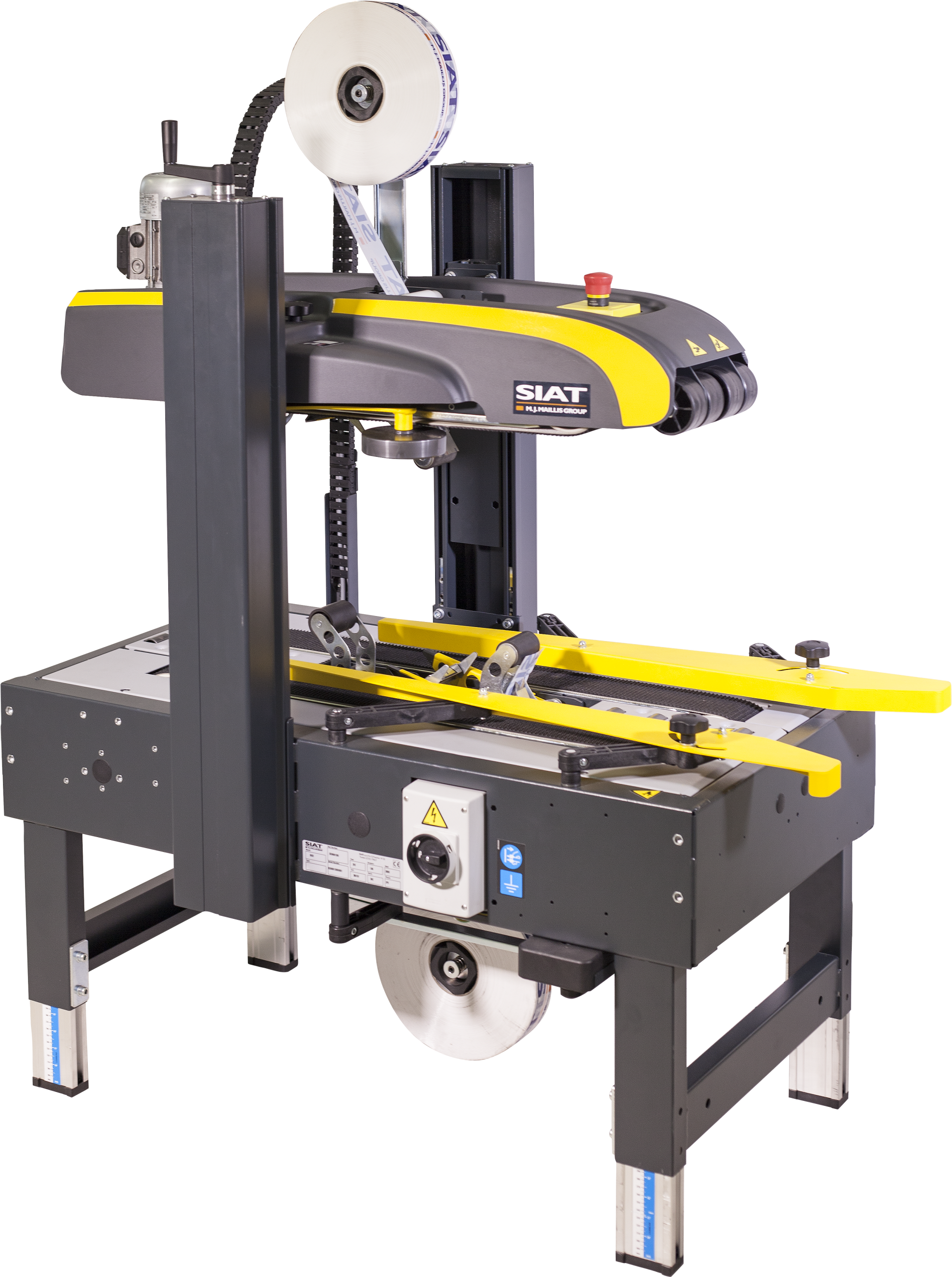

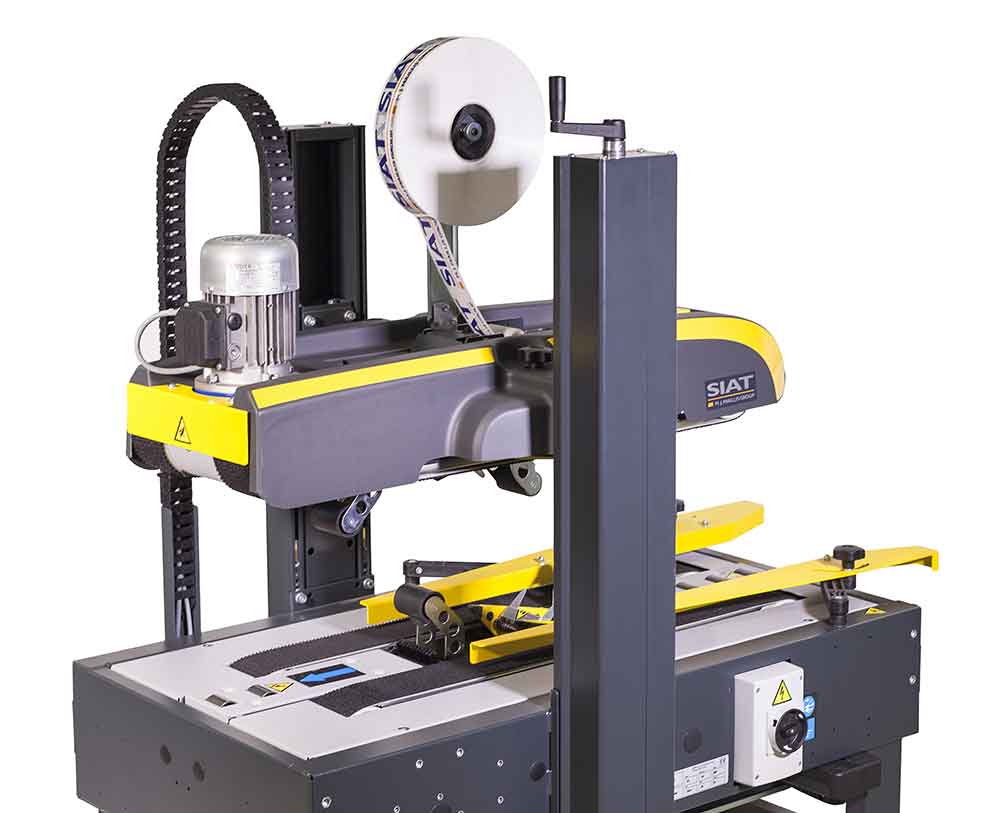

SIAT SK20 Semi-Automatic Carton Sealer
Semi-Automatics
The SK20 is a semi-automatic case sealing machine designed and engineered specifically for medium fixed sized boxes. Equipped with double top and bottom drive belts, which allows control of the carton box.
KEY FEATURES
Double top and bottom drive belts ensure carton box control during the incoming process before sealing
Robust dual mast frame and reliable components guarantee long-lasting performance
Quick setup and maintenance with a removable, tool-free taping head and energy-saving options
DOWNLOAD PRODUCT BROCHURE
Founded in 1970, Siat is the market leader manufacturing company producing machines for the packaging industry.
Specifications
Details
- Fixed-size, manually adjustable
- Independent top and bottom drive belts
- Side pressure rollers (top side pressure rollers required when box width is less than 205 mm)
- Adjustment on carton box width and height by handles
- K11R (50 mm) or K12R (75 mm) taping unit
- Drive belts speed 20 m/min
- 2 motors (0.13 kW)
- Max. output: 20 bpm (average depending on box dimensions)
Power Requirements
- 240V single-phase (standard), 3-phase available on request
Safety Features
- Safety emergency stop
Carton Sizes Range (mm)
- Min. L 150 x W 140 / 170* x H 100 mm
- Max. L ∞ x W 500 x H 500 mm
- *With top side pressure rollers (minimum width manageable 205 mm)
- Upper guides required for box width less than 205 mm (optional)
